The number one choice in downsizing, Phoenix Cruiser has a floorplan to suit your needs. When the time is right, the time is for Phoenix Cruiser.

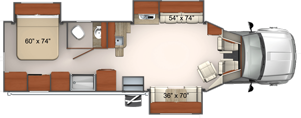

Phoenix CruiserFloorplans

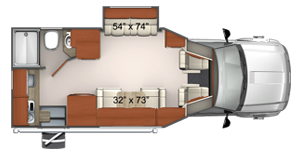

2100
2400

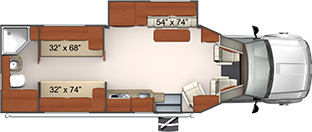

2552

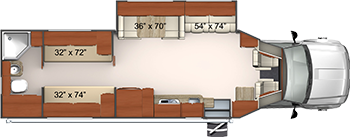

3100

2351

Phoenix Cruiser 2552

Phoenix Cruiser 2100 with Classic Nightscape Interior & Hickory Cabinets

Phoenix Cruiser 2552, Sinatra Interior & Silver Mist Cabinets

Phoenix Cruiser 2552 Sinatra Interior & Silver Mist Cabinets

Phoenix Cruiser 2552 Kitchen, Vicarro Interior & Natural Hickory Cabinets

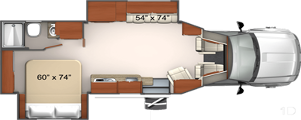

Phoenix Cruiser 2351D Bedroom with 60x72 Queen Bed - 60x74 Optional-

Exterior color

Toast
Nightscape

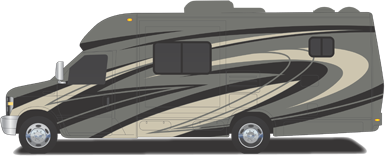

Greystone

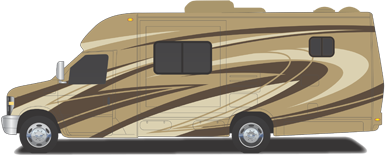

Desert Sand
Indigo

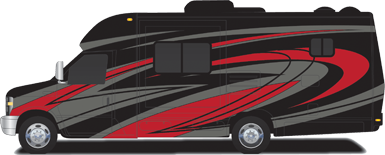

Merlot
Steel Blue
Scarlet

Interior Decor

Viccaro
Sinatra
Mirstone
Alfaro

Cabinet finish

Hickory

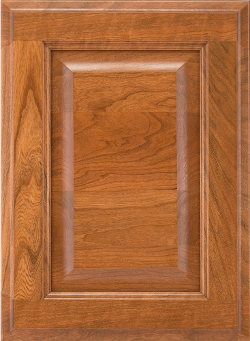

Cherry
Silver Mist

Flooring

Harbor Light
Nordic White
Hickory

Counter Top

AshStd w/ Sinatra & Viccaro
PotenzaStd w/ Alfaro & Mirstone

Phoenix CruiserSpecifications

Chassis
Engine
Axle
Wheel Base
Automatic Transmission
GVWR
GAWR Front
GAWR Rear
GCWR
Dual Wheels
Tires
4-Wheel ABS Disk Brakes
Ext Length w/o Ladder
Ext Height with A/C
Exterior Width
Interior Height
Fuel Capacity
Fresh Water Capacity
Waste Water Capacity
Gray Water Capacity
LP Gas Tank
Chassis Warranty
Powertrain Warranty

E-450
7.3, V-8
4.56
138"
6-Speed
14,500
5,000
9,600
22,000
Yes
LT225/75R16E
Yes
21’7”
10' 1"
93”
6’4”
55
31
25.5
35
42
36,000 mi/3yr
60,000 mi/5yr

E-450
7.3, V-8
4.56
170"
6-Speed
14,500
5,000
9,600
22,000
Yes
LT225/75R16E
Yes
24’11”
10'1"
93”
6’4”
55
46
19
35
42
36,000 mi/3yr
60,000 mi/5yr

E-450
7.3, V-8
4.56
182"
6-Speed
14,500
5,000
9,600
22,000
Yes
LT225/75R16E
Yes
25'11"
10'1"
93”
6’4”
55
40
19
35
42
36,000 mi/3yr
60,000 mi/5yr

E-450
7.3, V-8
4.56
164"
6-Speed
14,500
5,000
9,600
22,000
Yes
LT225/75R16E
Yes
24'1"
10'1"
93”
6’4”
55
31
19
35
42
36,000 mi/3yr
60,000 mi/5yr

E-450
7.3, V-8
4.56
206"
6-Speed
14,500
5,000
9,600
22,000
Yes
LT225/75R16E
Yes
27’10”
10'1"
93”
6’4”
55
46
35
19
42
36,000 mi/3yr
60,000 mi/5yr

E-450
7.3, V-8
4.56
220"
6-Speed
14,500
5,000
9,600
22,000
Yes
LT225/75R16E
Yes
30’10”
10'1"
93”
6’4”
55
47
19.5
35
42
36,000 mi/3yr
60,000 mi/5yr

E-450
7.3, V-8
4.56
220"
6-Speed
14,500
5,000
9,600
22,000
Yes
LT225/75R16E
Yes
30’10”
10'1"
93”
6’4”
55
47
19.5
35
42
36,000 mi/3yr
60,000 mi/5yr

E-450
7.3, V-8
4.56
218"
6-Speed
14,500
5,000
9,600
22,000
Yes
LT225/75R16E
Yes
30’10”
10'1"
93”
6’4”
55
46
35
19
42
36,000 mi/3yr
60,000 mi/5yr

Popular options

4x4 w/Double Entry Step (2552 or smaller)
See Level tank monitor upgrade
MorRyde Suspension (n/a on 2100)
Trogan AGM Battery upgrade
Liquid Springs (2552 or smaller)
Battle Born lithium battery package upgrade
Rear Cap with Spare Tire
Magna Shades for Cab Windows
Pass Wall TV Cabinet ILO of over Cab (limited Models)
WiFi extender
19” LED TV with DVD (Bedroom)
Cell phone power booster
Theatre Seating ILO of Sleeper Sofa/Pantry
Premium bedding package
2nd Back-up monitor above windshield
Cab window tint
6-way power passenger seat (n/a with swivel)
Safe T Plus
Swivel passenger seat (n/a with powerseat)
Solar Panels
Dinette IPO Sofa Pantry (2351, 2351D, 2552)
Satellite Dish
50 amp service w/ 2nd 15,000 BTU A/C & heat pump (2552, 3100)
Exterior Ladder (subject to availability)
Truma AquaGo hot water heater (n/a 2100, 2351D, 2400, 2910s)
Solid Wood Drawer Construction
Ultra Breeze vent covers

Premium packageFeatures

Onan generator
Class 3 hitch
Outside shower/faucet
Fantastic roof vent
15,000 BTU roof air with heat pump
Sharp residential convection microwave oven
TV antenna & booster
32” Samsung LED TV
Electric step
6 gal gas 110V DSI water heater
Heated remote mirrors w/ sideview cameras
Gold carbon fiber dash & drink tray

InteriorFeatures

Multiple Decor Choices
Cabinets Hickory (standard), (Cherry and Silver Mist optional)
Solid wood raised panel or shaker style (cabinet doors and drawer fronts)
Spacious wardrobe closet
Day & Night slow rise shades
Coordinated decorative valance
Solid Wood Table Tops
Corian counter top extension
Full Extension drawers with metal ball bearing glides
Oversized stainless-steel kitchen sink
Pull out kitchen faucet with sprayer
Solid surface counter tops with storage pocket for sink covers
Memory foam seating cushions and mattress
Adjustable reading lights over sofa and bed
LPG and CO detector smoke detector
Fire extinguisher
2 burner European range
Porcelain hand flush toilet (Plastic on the 2351)
12v high capacity on demand water pump
Pop-up electric outlet with 2 USB Ports in Kitchen
Congoleum Luxury Vinyl Flooring
Ample USB ports throughout the coach
LED Lighting throughout
Hand sprayer at toilet
Genuine leather furniture
Adjustable shelves in shirt closet
32" HD Smart TV
Fantastic Fans
Surround Sound with Blue Ray/DVD
Adjustable reading lights

ConstructionFeatures

Flush-mounted slide rooms
Aerodynamic body styling with curved sidewalls and roof
Vacu-bond laminated, sidewalls, roof, and floor
Smooth gel-coat fiberglass exterior
Fiberglass one-piece roof
Molded gel-coated fiberglass front cap & rear cap
2 ¼” thick floor with tubular steel framework, ½” exterior grade plywood subfloor
Top Grade Diamond shield, w/Lifetime Warranty installed on critical areas on forward facing painted surfaces
Heavy duty corrugated plastic and fiberglass laminated to underside of the floor
Block foam insulation is laminated inside the walls, roof, and floor
1 ½” thick sidewalls & rear wall w/ aluminum cage
All windows and other openings in the sidewalls are framed with tubular aluminum
All roof vents and skylights are framed with tubular aluminum
Rubber pucks (similar to motor mounts) placed between the truck frame and the floor, to give a smoother ride and reduced road noise
Fantastic vent

Electrical and WaterFeatures

6-Gallon gas water heater w/electronic ignition
Large double door refrigerator
Electric operated dump valves
Sanicom Turbo Macerator system for black and grey water disposal, with a 3-inch gravity disposal auxiliary back-up
Water distribution panel: City water, tank fill, tank use, and winterize
2nd fresh water fill with locking door-pass
Water heater by-pass
Enclosed low point drain valves for fresh water
Outside shower
Heated black and grey water holding tanks
Black and grey water tank flush system
Systems monitor panel
30-amp 25 ft long detachable power cord
2000-watt inverter
Battery disconnect switch
110 volt outside receptacle with GFI
2–6-volt, deep cycle house batteries with slide out tray
Cable RV hook up
3 locations for fresh water pump switch
4000 Onan Generator with auto start

Cab areaFeatures

V8, 7.3 Liter engine with 6 speed transmission (Ford)
4.56 axle ratio (Ford)
Garmin in dash navigation, camera monitor and infotainment system
Ford upgraded steering wheel control cluster
Driver and passenger front air bags
Cruise control
Power windows and locks
Tilt steering wheel
Tow – Haul mode
Pleated windshield privacy wrap
Hidden driver and passenger running boards
Swivel front passenger seat (standard on 2551 & larger)
Chassis battery charger switch
2 map lights
Memory foam driver and passenger seats
Aux. Input for stereo
3 – 12 Volt charger ports
Glove box and center console storage
Adjustable seat belts with shoulder strap
Drink holders
Keyless remote chassis doors
Extra insulated cab floor

ExteriorFeatures

Slam latch baggage doors
Phoenix USA, Inc. wheel covers
Phoenix USA, Inc. valve extensions
Chrome LED patio light
Rear skid rollers (n/a on 4x4)
Multiple paint selections
Body contoured entry door with deadbolt lock stainless
Frameless automotive style windows with awning type crank oprn glass with...
Chrome front bumper and grill
Weather Shielded fiberglass running boards Diamond shield paint protection...
200lb capacity slide-out storage door. (n/a 2400 & 2100)
One-piece fiberglass roof
3 color premium paint package
Hide-away retractable screen door
Rear Docking Lights

Heating/ApplianceFeatures

Large double door refrigerator w/ adjustable shelving
Recessed 2-burner european range
30,000 BTU furnace w/electric ignition (except 2351D)
6-gal gas/electric water heater w/ electric ignition (except 2351D)
Truma Combi Water Heater Furnace on 2351D

New featuresFeatures

Single key system plus keyless entry (except spare tire cover)
Ford cab floor added double heat and sound insulation allows for quieter ride
Front end alignment now standard on all Phoenix Cruisers
Power door locks with key fob
Power tower pop up electrical outlet and USB posts beside kitchen sink.
Redesigned slide-out seals
New latches with better holding capability
Larger capacity slide motors
Garmin in dash navigation, camera monitor & infotainment
