Phoenix USA RV
Built on the Ford Transit chassis, the Phoenix TRX is the perfect travel companion. With sleeping for two, the full kitchen & dry bath round out the premium features in this B+ motor home.

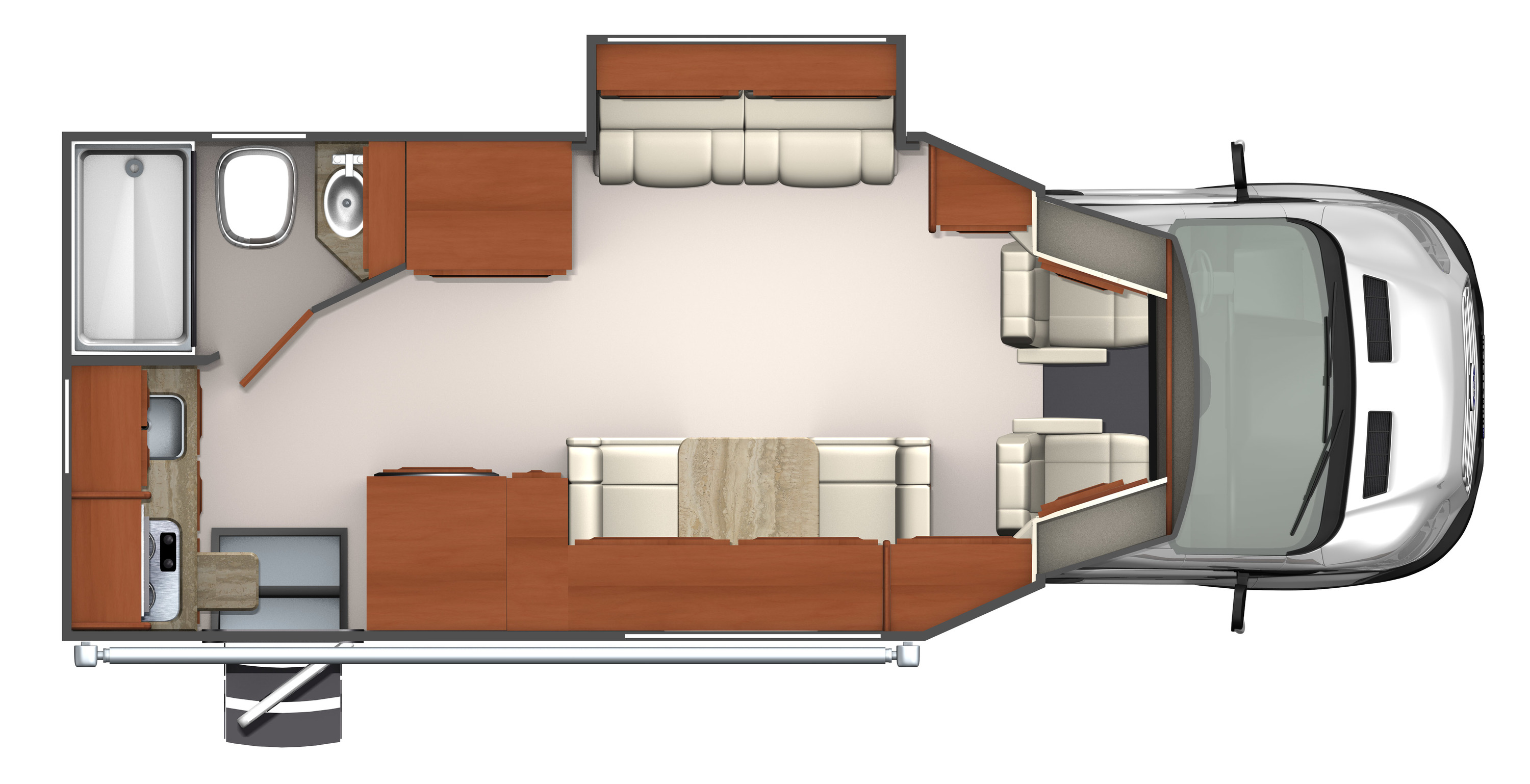

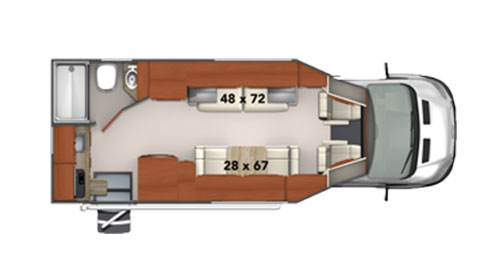

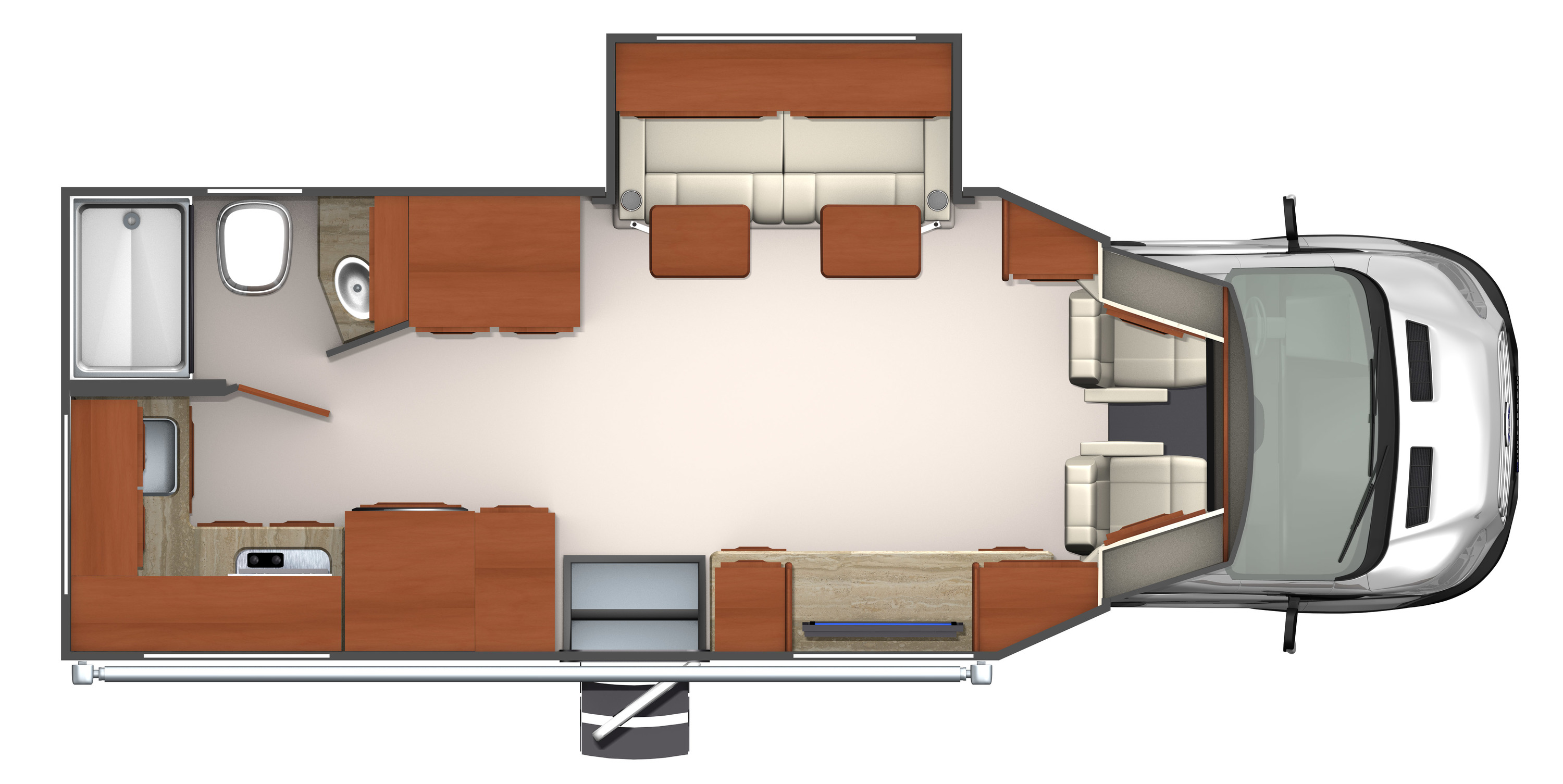

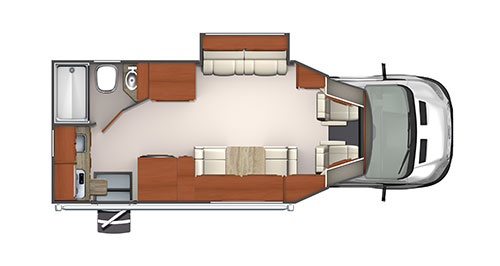

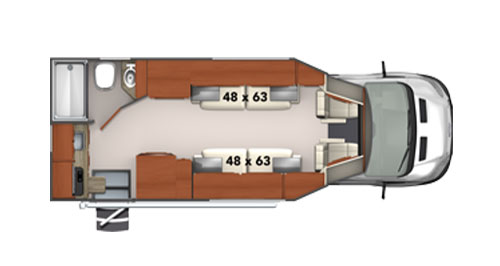

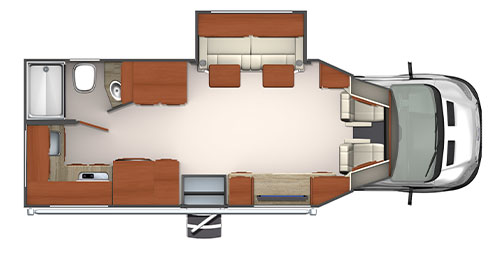

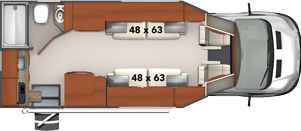

Phoenix TRXFloorplans
Exterior color
-

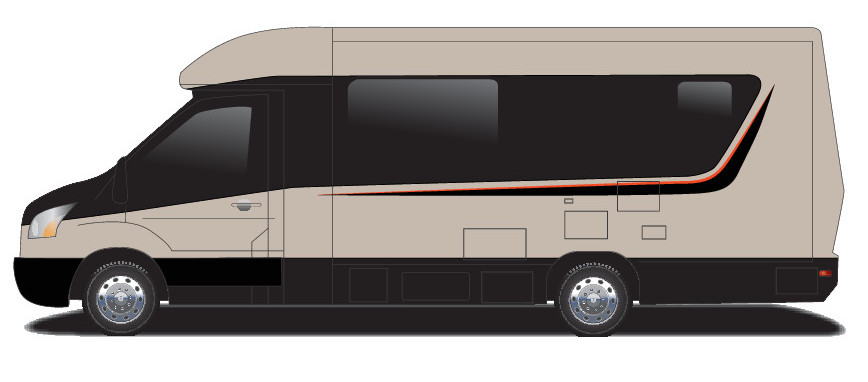

Mocha
-

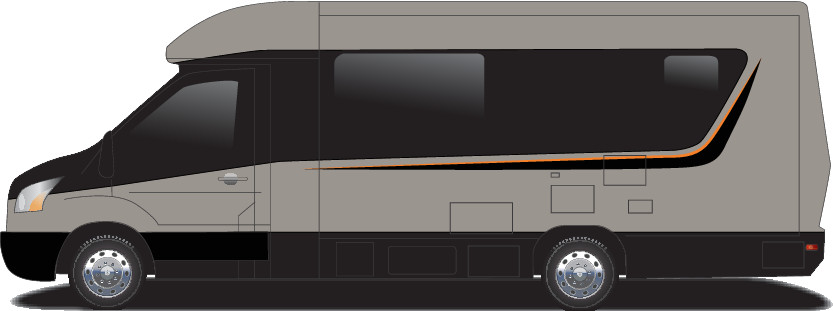

Greysteel
Interior Decor
-
Sirroca Grey
-
Sedona Riverrock
Cabinet finish
-
Hickory
-

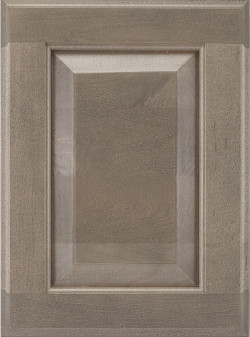

Silver Mist
Phoenix TRXSpecifications
- Chassis
- Engine
- Axle
- Wheel Base
- Automatic Transmission
- GVWR
- GAWR Front
- GAWR Rear
- GCWR
- Dual Wheels
- Tires
- 4-Wheel ABS Disk Brakes
- Ext Length w/o Ladder
- Ext Height with A/C
- Exterior Width (w/o awning)
- Interior Height
- Fuel Capacity
- Fresh Water Capacity
- Waste Water Capacity
- Gray Water Capacity
- LP Gas Tank
- Chassis Warranty
- Powertrain Warranty
- Hitch
- Onan Generator
- 350HD AWD Ford Transit
- 3.5L EcoBoost
- 3.73 Limited Slip
- 156
- 10 Speed Automatic
- 11,000 lbs
- 4,630lbs
- 5,750 lbs
- 15,000 lbs
- Yes
- 205/75R16C
- Yes
- 23’ 1”
- 9’8”
- 97"
- 6’4”
- 25 gal
- 31 gal
- 19 gal
- 25 gal
- 42 lbs
- 36,000 mi/3yr
- 36,000 mi/3yr
- 3000 lb
- 2800 Gas
- 350HD AWD Ford Transit
- 3.5L EcoBoost
- 3.73 Limited Slip
- 156
- 10 Speed Automatic
- 11,000 lbs
- 4,630lbs
- 5,750 lbs
- 15,000 lbs
- Yes
- 205/75R16C
- Yes
- 23’ 1”
- 9’8”
- 97"
- 6'4"
- 25 gal
- 31 gal
- 19 gal
- 25 gal
- 42 lbs
- 36,000 mi/3yr
- 36,000 mi/3yr
- 3000 lb
- 2800 Gas
- 350HD AWD Ford Transit
- 3.5L EcoBoost
- 3.73 Limited Slip
- 156
- 10 Speed Automatic
- 11,000 lbs
- 4,630lbs
- 5,750 lbs
- 15,000 lbs
- Yes
- 205/75R16C
- Yes
- 23’ 1”
- 9’8”
- 97"
- 6'4"
- 25 gal
- 31 gal
- 19 gal
- 25 gal
- 42 lbs
- 36,000 mi/3yr
- 36,000 mi/3yr
- 3000 lb
- 2800 Gas
- 350HD AWD Ford Transit
- 3.5L EcoBoost
- 3.73 Limited Slip
- 178
- 10 Speed Automatic
- 11,000 lbs
- 4,630lbs
- 7,275 lbs
- 15,000 lbs
- Yes
- 205/75R16C
- Yes
- 25’ 3”
- 9’8”
- 97"
- 6'4"
- 25 gal
- 31 gal
- 19 gal
- 25 gal
- 42 lbs
- 36,000 mi/3yr
- 36,000 mi/3yr
- 3000 lb
- 2800 Gas
Phoenix TRXFeatures
InteriorFeatures
- 2 Décor Choices (Sirocca Grey, Sedona)
- Cabinets (Hickory , Silver Mist)
- Shaker cabinet doors and drawer fronts
- Spacious wardrobe closet
- Day/night slow rise shades
- Coordinated decorative valance
- Solid wood table tops
- Solid wood counter top extension
- Full Extension drawers with metal ball bearing glides
- Stainless-steel kitchen sink
- Pull out kitchen faucet with sprayer
- Solid surface counter tops w/ storage pocket for sink covers
- Luxury vinyl flooring
- LED lighting on all interior lights
- Memory foam seating cushions and mattress
- Adjustable reading lights over sofa(s) and dinette
- LPG and CO detector smoke detector
- Fire extinguisher

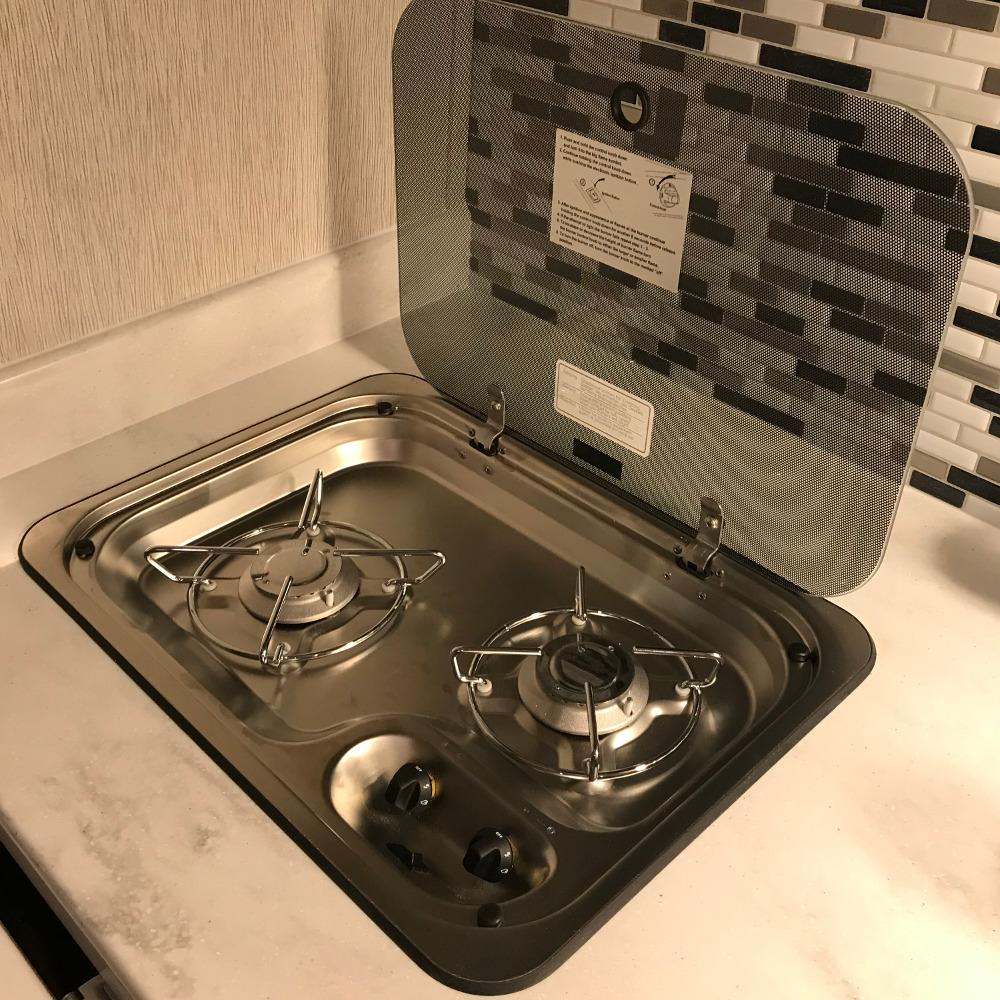

- 2 burner european range
- Pop-up electric outlet with 2-USB ports
- 12v high capacity on demand water pump
- Solid Wood Drawer Construction
ConstructionFeatures
- Aerodynamic body styling with curved sidewalls and roof
- Vacu-bond laminated, sidewalls, roof, and floor
- Smooth gel-coat fiberglass exterior
- Fiberglass one-piece walk-on roof
- Molded gel-coated fiberglass front/rear cap
- 2 ¼” thick floor with tubular steel framework
- ½” exterior grade plywood subfloor
- Heavy duty plastic fiberglass laminated to underside of the floor for moisture barrier
- Block foam insulation is laminated inside the walls, roof, and floor
- 1 ½” thick sidewalls and rear wall with aluminum cage
- All windows and other openings in the sidewalls are framed with tubular aluminum
- All roof vents and skylights are framed with tubular aluminum
- Top Grade 3 Diamond shield installed on critical areas on painted surfaces
- Fantastic vent
Electrical and WaterFeatures
- 15,000 BTU Roof A/C w/heat pump
- 3-way double door refrigerator w/adjustable shelving
- 2-Burner european range
- 30,000 BTU furnace w/electric ignition
- 6-Gallon gas water heater w/electronic ignition
- Water distribution panel: City water, tank fill, and winterize
- 2nd fresh water fill with locking door-pass
- Water heater by-pass
- Enclosed low point drain valve for fresh water tank
- Outside shower
- Heated black and grey water holding tanks
- Systems monitor panel
- 30-amp 25 ft long detachable power cord
- 2000- watt Inverter
- Battery disconnect switch
- 110- volt outside receptacles with GFI
- 2 – 6-volt, deep cycle house battery
- Cable TV hook up
- 2.5 gas Onan generator
- Manual waste tank dump valves
- 2 locations for fresh water pump switch
- Auto gen start
Cab areaFeatures
- Keyless remote chassis doors
- Cab floor insulated
- Ford factory installed dash A/C
- Factory installed AM/FM/CD Stereo/Navigation
- Driver and passenger front air bags
- Adaptive Cruise control
- Power windows and door locks
- Tilt steering wheel
- Windshield privacy curtain
- Integrated running boards
- Drink holders
- 2 map lights
- Memory foam driver and passenger seats
- Glove box and center console storage
- Seat belts with adjustable shoulder strap
ExteriorFeatures
- Baggage doors
- Ford solid aluminum wheels w/valve extension
- 3000lb hitch
- Chrome LED patio light
- Rear skid bar with rollers
- Two paint selections
- Body contoured entry door with deadbolt lock & keypad
- Integrated front bumper and grill
- One-piece fiberglass roof
- Fiberglass running boards
- Hide-away retractable screen door
- Frameless automotive style windows with awning type crank open glass with deep tint.
Heating/ApplianceFeatures
- 30” Convection Microwave Oven
- 15,000 BTU Air w/heat pump
New FeaturesFeatures
- Insulated cab floor reducing heat and providing sound insulation for quieter ride
- Front end alignment now standard on all Phoenix TRX
- Power door locks with key fob
- Power tower pop up electrical outlet and USB posts beside kitchen sink.
- SanMarin Macerator Toilet
- Magnetic cabinet door latches with high holding capability
- One Key single key system for coach and storage compartments
